Thin Plate Large Deflection Line

Introduction

Automatically used to open the wafer production line. Effectively uncoil the coiled material, use the servo yaw machine to send the coiled material into the deep-throat punching machine, move left and right and back and forth to automatically open the disc, and the waste is cut by the shearing machine behind the punching machine. The line body has a high degree of automation, the sway feeder has high precision and high efficiency, and the character-shaped cutting mode saves a lot of raw materials. It can effectively alleviate the problems of manpower shortage and low cutting efficiency.

Line composition

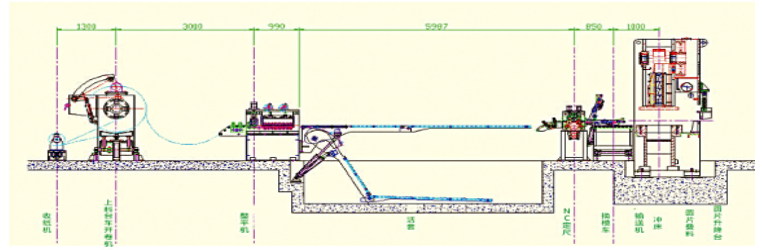

The overall line body is composed of four parts, specifically as follows: uncoiler (material frame) + precision leveler + NC pendulum feeder + deep throat punch + mechanical shear (automatic paper reel, automatic changer can also be selected Die lifter with automatic die changing trolley)
